CPT Testing in Hayward: Precision Cone Penetration for the Hayward Fault Zone

The mix of alluvial Bay mud and the shadow of the Hayward Fault creates a subsoil profile that standard penetration tests often struggle to resolve. In Hayward, where soft clays transition abruptly into dense alluvium, the CPT test provides a continuous, high-resolution log that captures these interfaces without the disturbance inherent in drilling. Our field teams operate calibrated electric cones that record tip resistance, sleeve friction, and pore pressure simultaneously, producing data that feeds directly into liquefaction assessments per ASCE 7-22. For sites within the Alameda County liquefaction susceptibility zones, this detail is not a luxury — it is the difference between a foundation that performs and one that settles differentially during the next major seismic event.

In Hayward's interbedded alluvium, a CPT log captures thin liquefiable seams that blow-count methods skip, making it the only defensible choice for seismic site class determination.

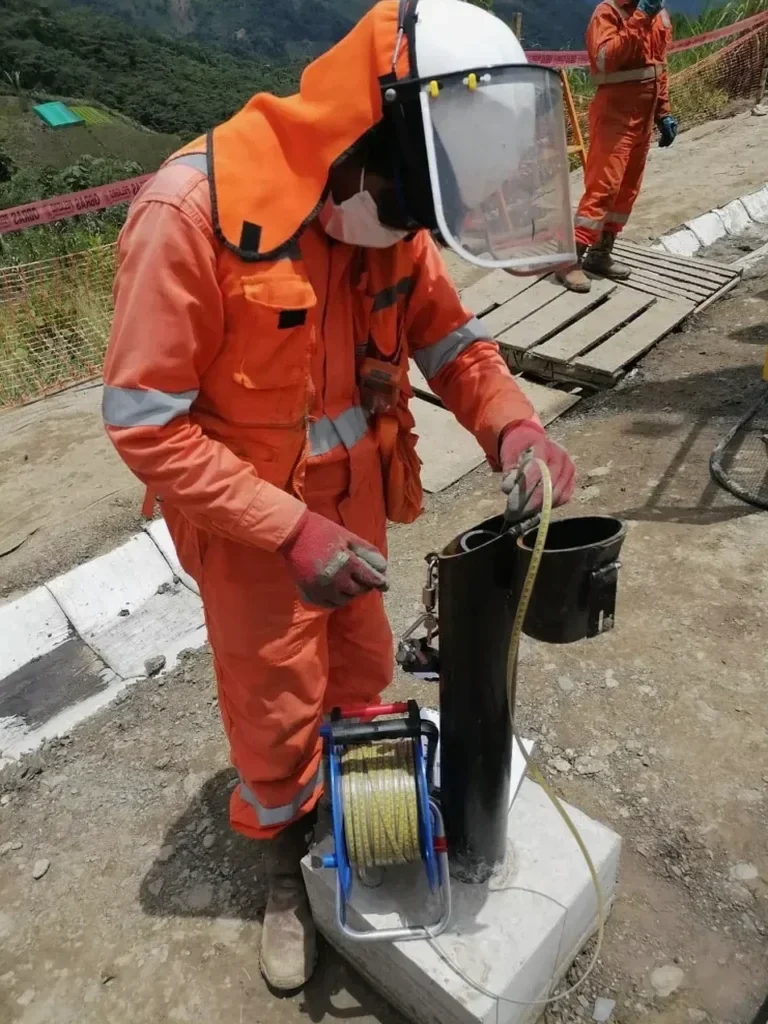

Our approach and scope

ASTM D5778 sets the standard for our electronic cone penetration work, and in Hayward we push every sounding to refusal or a minimum of 80 feet within the shallow groundwater conditions typical of the East Bay plain. The continuous data stream reveals thin silt seams and liquefiable layers that interval-based sampling misses. We pore pressure dissipation tests at critical depths to estimate consolidation rates in the Young Bay Mud, a parameter that controls settlement predictions for spread footings and mat foundations. The friction ratio from the CPT sleeve, combined with soil behavior type charts, allows us to classify the profile without the lag time of laboratory index testing. In our experience, the correlation between corrected cone resistance and drained shear strength in the Merritt Sand formation gives a more reliable bearing capacity estimate than blow counts alone.

Site-specific factors

A common mistake we see in Hayward is relying on SPT-only profiles for liquefaction analysis in the interbedded creek deposits west of Mission Boulevard. The SPT split-spoon sampler averages soil behavior over a 12- to 18-inch interval, completely missing a 3-inch silt seam that will liquefy under cyclic loading. When the next rupture occurs on the northern segment of the Hayward Fault, pore pressure in that thin seam equalizes in seconds, and the overlying crust loses bearing. A CPT log with 2-cm sampling interval catches that seam and triggers the correct mitigation strategy — whether densification with vibrocompaction or a deep foundation bypassing the liquefiable horizon. Skipping the cone data is the kind of decision that leads to a building red-tagged after the first strong aftershock.

Technical parameters

Parameter	Typical value
Cone Type	10 cm² electric friction cone (u2)
Data Channels	Tip resistance (qc), sleeve friction (fs), pore pressure (u2)
Push Rate	20 mm/s ±5% per ASTM D5778
Maximum Depth	80 ft or refusal on dense Pleistocene gravels
Dissipation Tests	t50 pore pressure decay at critical clay layers
Reporting	Corrected qt, Rf, SBTn classification (Robertson, 1990)
Saturation Fluid	Silicone oil for fast u2 response

Complementary services

Seismic CPT with Shear Wave Velocity (SCPTu)

We deploy a seismic cone with a triaxial geophone at 1-meter intervals to measure Vs directly. This provides Site Class (A through F) per ASCE 7-22 without a separate crosshole survey, and the combined qc-Vs data set refines the CRR for liquefaction triggering analysis using the Robertson (2009) method.

Piezocone Dissipation and Consolidation Testing

At pre-selected depths in the Young Bay Mud, we halt penetration and record pore pressure decay curves. The t50 time from these dissipation tests yields the coefficient of consolidation (cv) in the horizontal direction, a parameter that governs the time-rate of settlement under the new warehouse slabs going in along Huntwood Avenue.

Applicable standards

ASTM D5778-20: Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils, ASCE 7-22: Minimum Design Loads and Associated Criteria for Buildings and Other Structures (Seismic Site Class), IBC 2021: California amendments with Hayward Fault near-source factors, ASTM D7400-19: Standard Test Methods for Downhole Seismic Testing (seismic CPT correlation)

Questions and answers

How much does a CPT sounding cost at a Hayward site?

For a standard CPTu sounding to 80 feet with dissipation tests in Hayward, budget US$190 to US$230 per hour of rig time. A typical single-day mobilization with two soundings and a seismic cone add-on runs between US$2,800 and US$3,400, depending on access constraints and traffic control requirements on city streets.

Can the CPT rig work on a small residential lot in the Hayward hills?

Our track-mounted CPT rigs have a footprint of roughly 6 by 12 feet and can access most residential parcels through a standard side gate. For lots with steep slopes above the fault trace, we use a portable anchoring system that does not require a reaction truck, and we coordinate with the city arborist when tree protection zones overlap the push locations.

What pore pressure parameter do you use for liquefaction analysis in Hayward?

We use the normalized friction ratio and corrected cone resistance (qc1Ncs) with the Robertson (2009) CPT-based liquefaction triggering method, which accounts for the fines content indirectly through soil behavior type index (Ic). For the Young Bay Mud and interbedded sands common in Hayward, the Bq parameter from the piezocone is also a direct indicator of contractive behavior under cyclic loading.
